End-on-end
End-on-end is a plain weave textile made by alternately arranging fine warp threads of different colors. It appears solid from a distance, while up close it has a delicate heathered look and fine striped effect.
Contents6 sections
Definition and Overview
End-on-end is a plain weave fabric that typically uses fine-count yarns, with light and dark yarns of different colors arranged alternately in the warp. Because the yarn colors blend together finely, it looks like a subdued solid from a distance, while up close it shows a subtle striped or heathered appearance.
The name comes from the arrangement of the warp yarns, but the yarn usage, color combination, and density vary by textile. For that reason, end-on-end is treated not as a material name or a single standard, but mainly as a textile name that describes the weave and appearance.
Texture and Visual Characteristics
It has a relatively even and smooth surface characteristic of plain weave, and the fine color blending creates a sense of depth. It does not stand out as a strong pattern, has more character than a solid, and tends to create a neat, light impression.
The texture changes greatly depending on the material, such as cotton, polyester, or wool, as well as yarn thickness, weave density, and finishing. Thin, high-density versions are more likely to have the smoothness typical of shirting fabrics, and depending on the material and construction, they can also have a dry touch or moderate firmness.
Main Applications
Typical applications include dress shirts, casual shirts, and blouses. Because it is easy to coordinate like a solid, and shows a delicate look up close, it is used widely from business wear to smart casual styles.
Versions with different materials or fabric weight are also used for light garments for spring and summer, as well as jackets, suits, skirts, and dresses. Seasonal suitability is not determined by the name alone, so when planning, it is important to check the material composition, fabric weight, thickness, and breathability individually.
- Shirts and blouses
- Jackets and suits
- Skirts and dresses
Selection and Handling Notes
When selecting, check the contrast between colored yarns and the fineness of the pattern at the actual viewing distance. The stronger the contrast, the more visible the stripes; the finer the color arrangement, the closer the look is to a solid. In sewing samples, also check the appearance by cutting direction and pattern matching at the collar, placket, and pockets.
Shrinkage, post-wash wrinkling, and color changes are affected not by the end-on-end weave itself, but mainly by the fiber type, dyeing, and finishing. For fabrics containing natural fibers, it is desirable to conduct washing tests and shrinkage checks before mass production, and to align the grain before cutting.
Fine-count, high-density fabrics may show seam puckering and needle holes. Choose the appropriate needle size and sewing thread for the fabric, and adjust sewing conditions in advance. For fabrics using light and dark yarns, also check color fastness to rubbing and whether color bleeding occurs.
Differences from Similar Terms
Chambray is generally a plain weave fabric that combines colored warp yarns with white or similar weft yarns, making different colors more visible on the front and back. End-on-end also has an appearance created by fine color blending, but it often refers more to a subtle striped or heathered look, and the distinction between the two varies by industry and fabric.

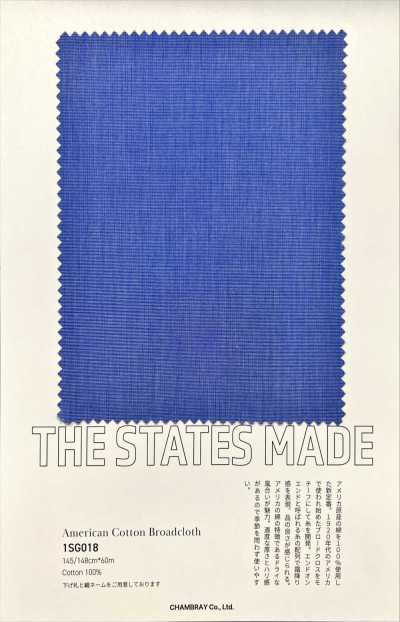

Broadcloth and poplin refer mainly to plain-weave shirting fabrics woven tightly with fine yarns. These are names focused on structure, density, and texture, while end-on-end is a name focused on the appearance created by color arrangement. The same fabric may have features of both.
Frequently Asked Questions
Is end-on-end a striped fabric?
Because different colored yarns are used alternately in the warp, very fine stripes may be visible up close. However, in many cases the goal is not to make the stripes stand out strongly, but to create a solid-like look with blended colors. The visibility of the pattern changes depending on the color arrangement and yarn thickness.
What is the difference between end-on-end and chambray?
Both are plain-weave fabrics with color depth created by using different colored yarns, but chambray is characterized by the difference in color between the warp and weft, which creates different front and back appearances. End-on-end often refers to the subtle stripes or heathered look created by finely alternating yarns. The usage of the names is not always consistent.
Does end-on-end shrink when washed?
The degree of shrinkage cannot be determined from the end-on-end name alone; it depends on the fiber composition, yarn, density, and finishing. Especially when cotton or similar fibers are included, it is necessary to anticipate changes from washing, check the shrinkage rate in advance, and reflect it in the pattern and sewing specifications.
