Circular Ring

Definition and Overview

A circular ring is a type of ring accessory formed by shaping wire into a loop. It is used to connect hardware by threading tape, belts, cords, chains, and similar items through it, and it is also used as a design accent. In English, it is generally called an O-ring.

A circular ring is basically a one-piece part with no opening or closing mechanism. For that reason, it is not a removable fitting like a snap hook, but is suited to applications that permanently connect sewn-on tape or other fittings.

Materials and Structure

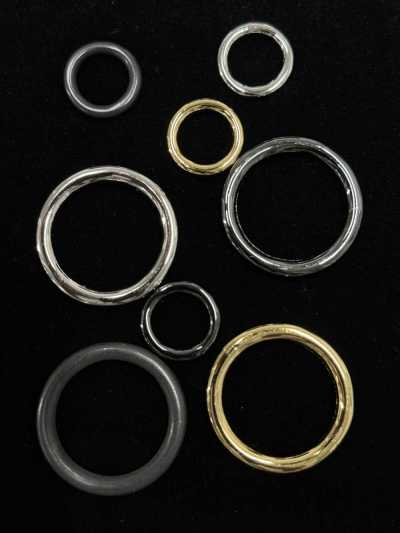

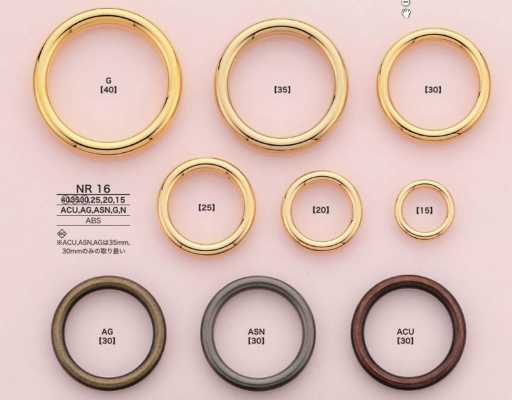

For metal versions, iron, brass, zinc alloy, stainless steel, and similar materials are used, and plating or coating may be applied to the surface. In addition to metal, there are also resin circular rings, which are selected with consideration for lightness and for products that should avoid metal.

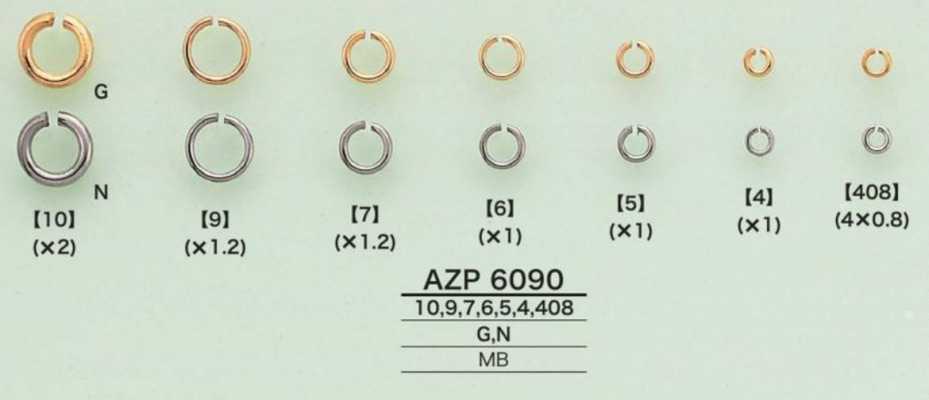

Shapes include not only perfect circles but also slightly elongated oval forms, thicker types, and types with a thinner wire diameter. The wire diameter, inner diameter of the ring, outer diameter, and cross-sectional shape affect not only appearance but also ease of threading and load capacity.

How Sizes Are Shown

Circular ring sizes are generally indicated by the inner dimension or inner diameter. However, whether the stated standard is inner diameter or outer diameter differs depending on the product number or specifications, so it is important to check the dimension drawing when ordering.

The tape width to be threaded should be set with some allowance relative to the inner dimension of the circular ring. When the tape is folded back and sewn on, the required space increases due to tape thickness, seam allowance, and overlap, so check the threading fit with the actual item or a prototype.

• Inner dimension: the measurement of the inside of the ring through which tape or cord passes.
• Outer dimension: the outside measurement of the entire fitting, which affects the attachment position and how it looks.
• Wire diameter: the thickness of the material that forms the ring, which affects strength, weight, and appearance.

Main Applications

In apparel, it is used for connecting shoulder straps and straps, waist belts, adjustable details at cuffs and hems, and design details. In bags, it is also used to connect shoulder tape, attach handles, and hang accessories.

A key feature is that it can add decorative appeal by making use of its round outline. On the other hand, because it is difficult for it to independently perform the role of fine tape length adjustment, it is used together with a slide adjuster or buckle ring as needed.

Selection and Precautions

Select the inner dimension and wire diameter based on the load applied to the area of use, the pulling direction, and the tape width and thickness. In applications subject to repeated load, such as bag handles and shoulder straps, do not judge only by the visible dimensions; check strength in the specifications, including the attachment area.

For metal versions, rust, discoloration, and plating wear may occur due to sweat, moisture, washing, or friction. Confirm the material and surface treatment according to the application and washing conditions, and verify through testing the effects of contact with dissimilar metals or textiles.

For products subject to needle inspection, manage them on the assumption that metal circular rings will react to the metal detector. Even for resin versions, it is necessary to confirm compliance with inspection conditions for the product as a whole, including whether there is a core material or attached parts.

Frequently Asked Questions

What is the difference between a circular ring and a D ring?

A circular ring is a circular or oval ring, and its features are a curved appearance and ease of connection in multiple directions. A D ring is D-shaped, making it easier to align tape along the straight side and stabilize the tape attachment position.

Should the inner dimension of a circular ring be the same as the tape width?

If the inner dimension is the same as the tape width, thickness and folded sections may make it difficult to thread. Extra allowance is especially necessary for thick tape or specifications with overlapped stitching. It is important to confirm by making a prototype matched to the tape and sewing specification used.

Can a belt length be adjusted with only a circular ring?

A circular ring is mainly a connecting ring and by itself does not have a function to fix and adjust length. When length adjustment is needed, either adjust how the tape is threaded or combine it with adjustment hardware such as a slide adjuster or buckle ring.
