Snap Hook

Definition and Overview

A snap hook is a hook-shaped fitting with an opening-and-closing part called a gate at the tip that is pressed to attach it to a mating fitting, and closes again with spring force when released. The name is said to come from its shape resembling an eggplant, and it is used for detachable parts such as bag straps.

At the lower part of the body, some types have a ring for threading tape or cord, or a rotating shaft. The rotating type is characterized by making the strap less likely to twist during use. However, the presence or absence of a swivel mechanism and the shape of the opening-and-closing part vary by product type.

Materials and Structure

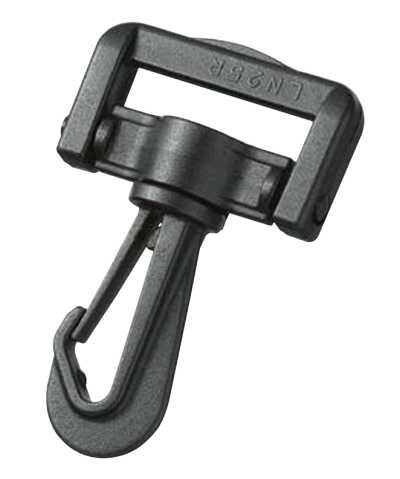

For metal types, zinc die-casting, iron, brass, and aluminum are used, and the surface may be plated or painted. Depending on the application, resin types are also available and are selected for products that prioritize light weight or a non-metal specification.

The typical structure consists of the body, the opening-and-closing gate, a spring that returns the gate, and a base for attaching tape or other materials. Because it includes a spring and shaft, it is necessary to check not only the appearance but also the return of the gate, looseness in moving parts, and the operation of the rotating part.

How to Indicate Size

The size of a snap hook is checked not only by overall length but also by the inside dimension of the part through which the tape passes. If the tape width and the inside dimension do not match, the tape may not pass through, may move poorly, or may shift sideways, affecting appearance and how the load is applied.

In specifications, listing the inside dimension of the tape attachment part, overall length, maximum width, and opening size separately as the threading width helps prevent misunderstandings. The wire diameter and inside dimension of the mating D ring or other fitting are also checked with an actual sample to confirm that the gate passes through reliably.

• Check the inside dimension of the attachment part, including the finished thickness of the tape to be threaded.
• Check the opening size against the thickness of the ring or cord to be connected.
• Also specify the left-right orientation and whether it is a swivel or fixed type.

Main Applications and Selection

It is used for bag shoulder straps, key holders, pouch connection parts, and removable garment accessories. A snap hook is a fitting intended for attachment and removal, and its role differs from a slide adjuster or buckle used primarily for length adjustment.

When selecting one, confirm that the strength matches the product weight and expected load, and perform tensile tests and opening-and-closing tests under conditions close to actual use. For applications supporting heavy loads, evaluate the strength of the entire assembly, including not only the gate but also the tape, stitching, and the mating ring.

Plated products may discolor or corrode due to friction, sweat, moisture, washing, or chemicals. In products for children, where needle detection steps are involved, confirm in advance whether there is any metal and whether needle detector compatibility is required, and consider specifications suitable for the process, including resin types.

Differences from Similar Terms

D rings, circular rings, and rectangle rings are ring-shaped fittings used to pass tape or cord through, or to hang a snap hook from. Since these fittings usually do not have a spring-loaded opening-and-closing gate, they are distinguished from snap hooks, which have a quick attachment and removal function.

Slide adjusters and buckles are fittings mainly used to adjust tape length. A slide adjuster may be combined with the attachment part of a snap hook, but a snap hook is for connection and removal, while a slide adjuster or buckle serves the function of length adjustment.

Frequently Asked Questions

What mm size should I choose for a snap hook?

Basically, choose one by matching the inside dimension of the snap hook's tape attachment part with the tape width you will use. However, the tape thickness, overlap at the folded section, and bulge after sewing must also be considered. For the mating D ring and similar parts, also confirm that the wire diameter fits through the opening size.

How should snap hooks and D rings be used differently?

A snap hook is a hook for attaching to and removing from a mating fitting by means of a spring-loaded gate. A D ring is used as a ring-shaped receiving fitting for threading tape through or hanging a snap hook from. In general, a snap hook is combined with a D ring for parts that need to be detached, while a D ring is used for fixed connection points.

Can the strength of a snap hook be judged by appearance alone?

The strength cannot be judged only by the apparent size or thickness. Actual durability varies depending on the material, manufacturing method, gate and spring structure, mating fitting, tape, and stitching specification. It is important to perform tests and quality checks in the assembled state according to the expected load and number of uses.
