EX80

EX80 3M™ Thinsulate™ Ex-Soft 80g/m2[Interfacing]

EX80

3M™ Thinsulate™ Ex-Soft 80g/m2

Name: 3M™ Thinsulate™ Ex-Soft 80g/m2
Brand: N/A
SKU: 1015155
Rating: 5 (1 reviews)

ApparelX ID:1015155

From sportswear to fashionable wear, it delivers comfortable warmth and style.
※If ordering by the roll, enter 50 in the quantity field.

Set roll quantity

※Regarding sample cards
If you order a sample card for this item, we will send you a fabric swatch.

Brand / Manufacturer:

Supplier:

Thinsulate

Size:Please select

Stock Status(*):Displayed after account registration

*Excl. tax

Qty.

Ask About This Product

Size

Please select a size:

152CM

Order Remarks

Add a note for the supplier or for your own reference:

Enter Order Remarks

Order Sample Book

Order a sample book here:

*Note: Sample Book Item will be added to your cart. Remove it from your cart if you do not need it. Your order notes will also be applied to the sample book.

SAMPLE

Sample Card

Product Description

From sportswear to fashionable wear, it delivers comfortable warmth and style.
※If ordering by the roll, enter 50 in the quantity field.

Set roll quantity

※Regarding sample cards
If you order a sample card for this item, we will send you a fabric swatch.

Features
1. Compared with conventional quilt batting, it is 20-30%* lighter while delivering the same level of thermal insulation, providing a comfortable fit that is light and warm.*
2. Pursuing an unprecedentedly soft hand and improved drape, it achieves an even better fit from fashion wear to sportswear.
3. Since it can be used with panel stitching, it allows for a wide range of design applications. (Recommended panel size: 30 cm x 45 cm)
4. It can be washed with water and petroleum-based dry cleaning.

*Based on 3M test data

product number	EX30	EX40	EX60	EX80	EX100	EX120
product name	3M™ Thinsulate™ Ex-Soft 30g/m2	3M™ Thinsulate™ Ex-Soft 40g/m2	3M™ Thinsulate™ Ex-Soft 60g/m2	3M™ Thinsulate™ Ex-Soft 80g/m2	3M™ Thinsulate™ Ex-Soft 100g/m2	3M™ Thinsulate™ Ex-Soft 120g/m2
thumbnail
thickness order	1	2	3	4	5	6
thickness	Thin	Thin	Thin	Medium	Slightly thick	Thick
industry weight	30g/m2	40g/m2	60g/m2	80g/m2	100g/m2	120g/m2

* Horizontal scrolling is available.

* The information above is for reference only. Please check the actual product before use.

Category	Interfacing
Subcategory	Quilt Batting
Gender	Unisex
Intended Use	Outerwear
Collection	Thinsulate


Specification	Specification: 152 cm × 50 m Industry weight: 80 gsm Color: Off-white
Material	100% polyester E

Share This Item

FAQ

Frequently asked questions about this product:

What are the standard sizes for inside belt interfacing used in men's garments?

33 mm, 38 mm.

What kind of problem is kiratsuki?

It is the phenomenon of resin sparkling through the gaps in the weave of the face fabric.
Materials with a loose weave and dark-colored lightweight fabrics are especially noticeable, so using colored resin will resolve it.

What kind of problem is bleed-through?

A state where adhesive resin seeps through to the outer fabric, impairing the fabric’s hand.
As a solution, choose one with a smaller adhesive resin particle size.

What does the D (denier) in 20D or 30D mean?

Denier is a unit used for filament yarn (continuous filament fiber)*, indicating the weight per 9,000 m. If 9,000 m weighs 1 g, it is 1 denier; if it weighs 50 g, it is 50 denier.
The higher the denier count, the thicker the thread and the heavier the fabric.

What kind of problem is bubbling?

A condition where fine air bubbles appear to be trapped between the outer fabric and interlining. It occurs because the compatibility between the fabric and interlining is poor. It may be resolved by choosing an interlining with vertical and horizontal stretch.

What kind of problem is fading?

It is when the uneven texture of the resin pellets becomes clearly visible on the surface of the outer textile. The solution is to choose interfacing with smaller resin dots.

What is the difference between single-dot and double-dot fusible interlining?

It is a difference in the adhesive coating method.
Single dot is made by solidifying fine powdered adhesive and transferring it in a dotted pattern onto the base fabric.
Because the adhesive is fine, it is less likely to bleed through thin materials and less likely to cause fading.
Double dot has a two-layer structure, with a gel-like adhesive forming the base and powdered adhesive layered on top of it.
It provides strong adhesion for a wide range of materials.

What is the difference between the whites such as KW, OW, W, and Y in fusible interlining colors?

The color notation varies by product number, but KW and W are fluorescent white, and Y and OW are off-white.
Fluorescent white is a whiter, purer white.

Can interfacing be shipped rolled on a tube?

Basically, orders of 5 m or more will be shipped wound on a tube.

How should I choose interfacing?

The appropriate interlining varies depending on the face fabric material, thickness, and area of use, so we cannot give a single answer.
Please contact us via inquiries with the face fabric material, area of use (neckline, body, etc.), and desired hand feel.

If you can provide the face fabric, we can perform an adhesion test. Please request this from Interlining Adhesion Test.
By performing an adhesion test, you can find out in advance things like adhesive strength and changes in appearance.

General Notes

Please confirm the following general notes regarding items at this site:

Zipper | Payment when you choose 'Fast Delivery'

If we cut a longer zipper to the length you want, the price will be changed.

Please make a payment after the price is fixed, in the case of Bank Transfer.

*** In the case of Credit Card, we will charge the extra after the price is fixed.

Product image disclaimer

Product images may not accurately represent actual colors. For bulk production, confirm the color using a physical sample.

Payment for Full-Roll Fabric Orders

The exact length of a full fabric roll may vary. We will notify you once the final length is confirmed.

*** For bank transfers, please pay after the final length is confirmed.

*** For credit card payments, any additional amount will be charged after the final length is confirmed.

Need help? Visit our Support page

Reliable: 75 Years in the Industry

MOQ: From 1 Meter, 1 Piece, 1 Set

Flexible Shipping Option: DHL, EMS, etc.

Credit Cards / Wallets / On Account

Reviews

See reviews from other customers.

Share your experience by posting a review.

MESS

Purchased at ApparelX

Anyway, it's light and warm.

Dec 30, 2024

Size:152CM

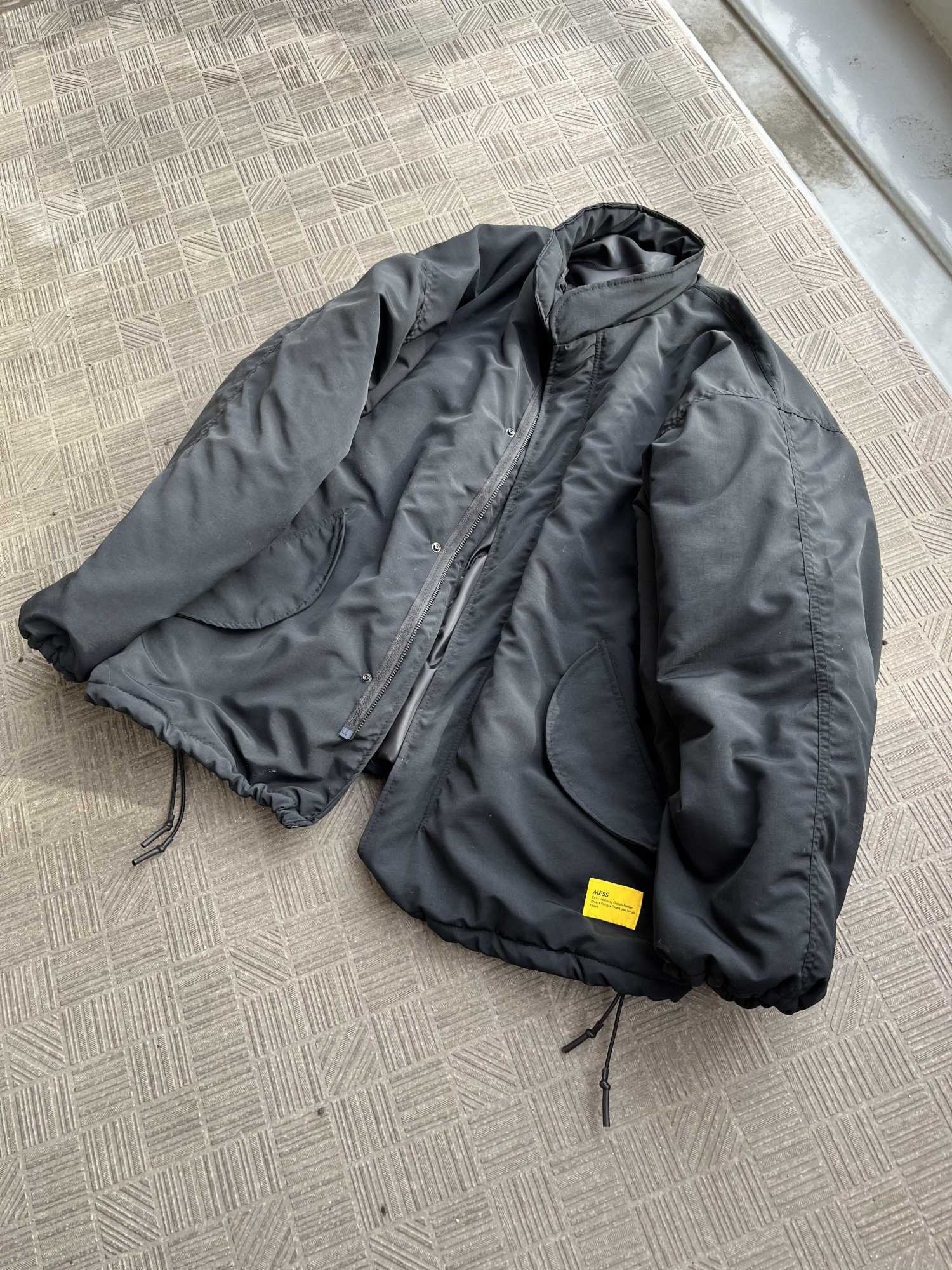

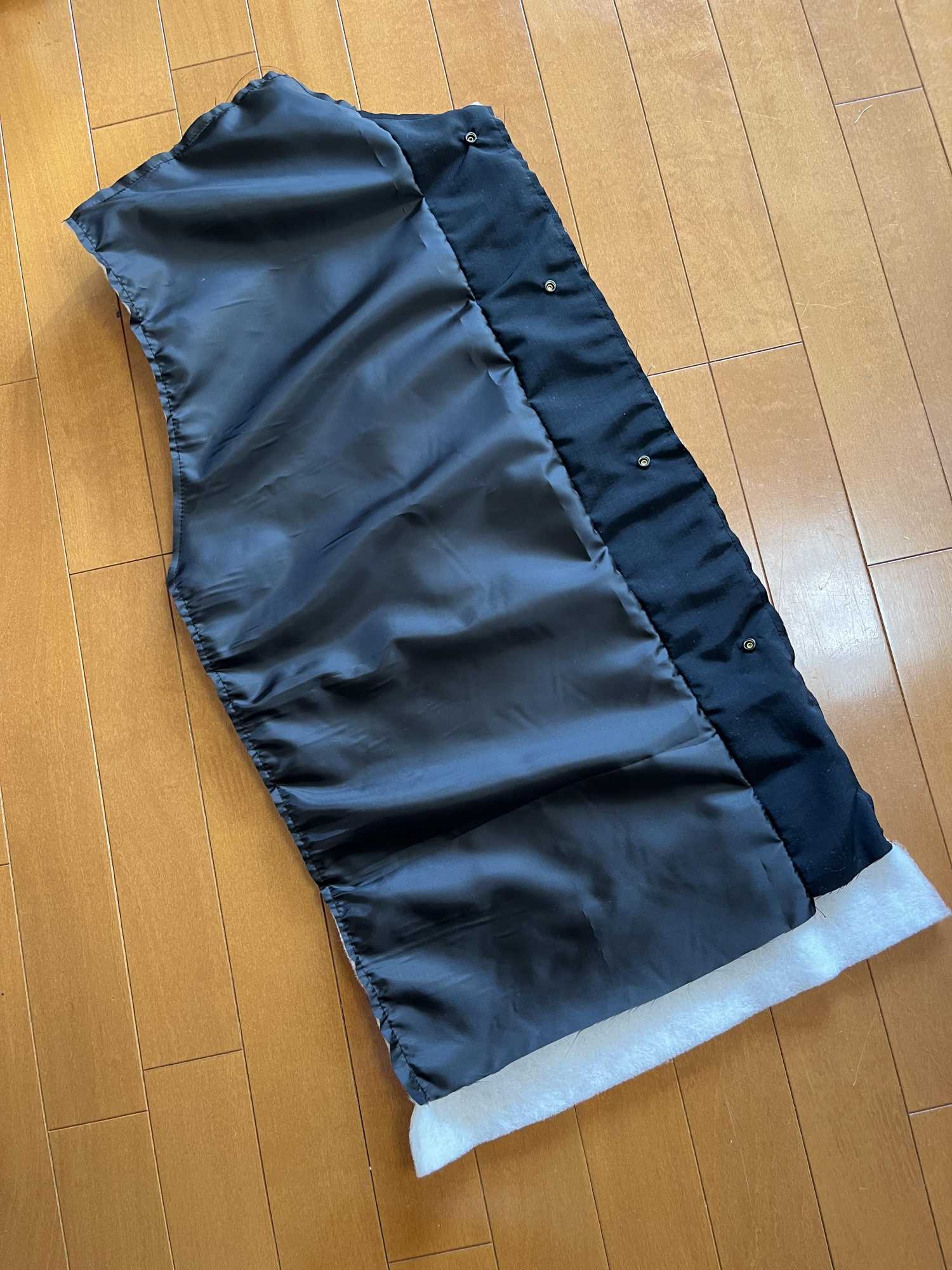

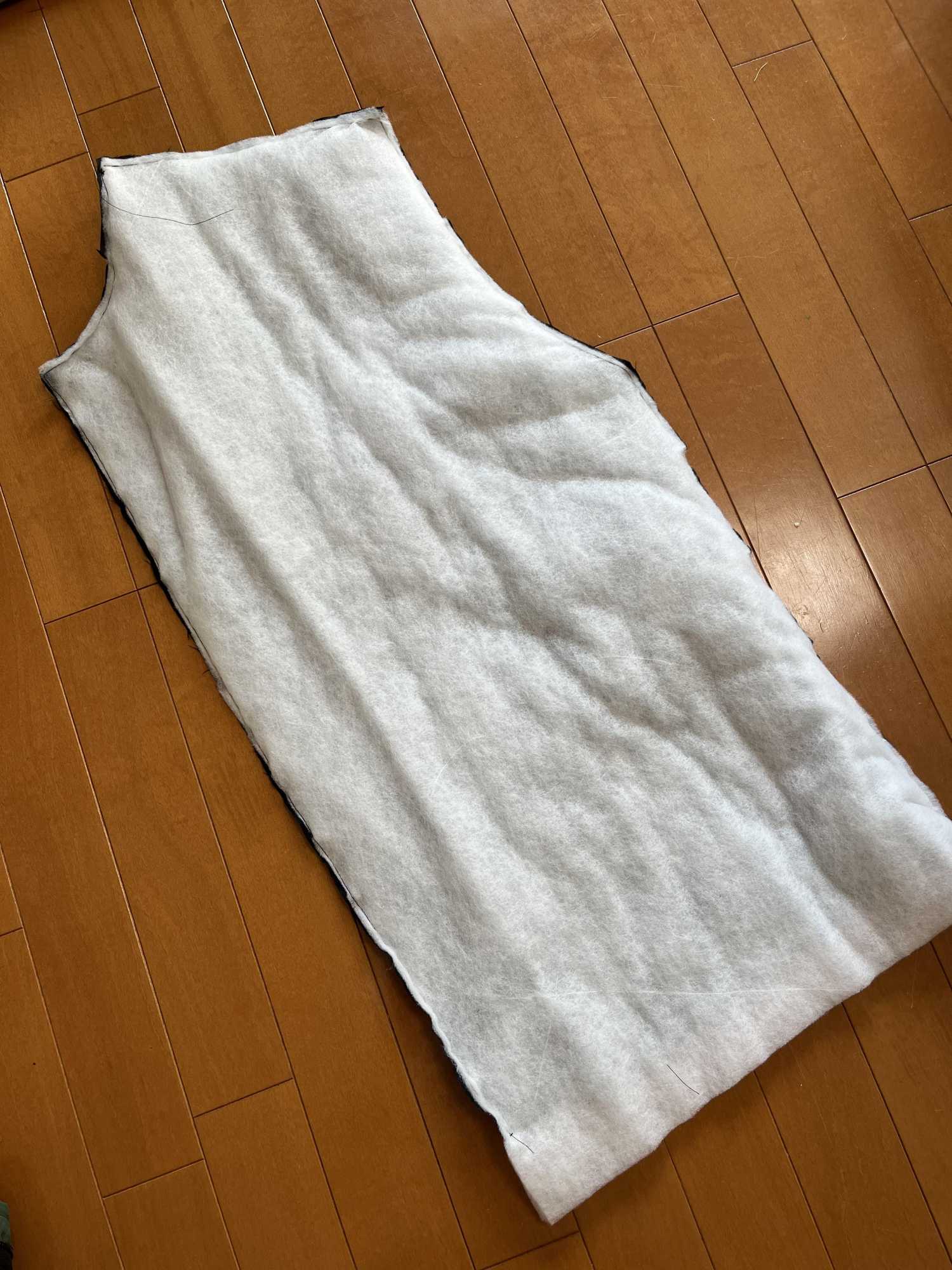

I bought this because I wanted to make outerwear.
When I received it I wished it was a little more voluminous, but once I made it I was very happy with how warm it was.
Also, it's so light that you can wear it without any stress.
