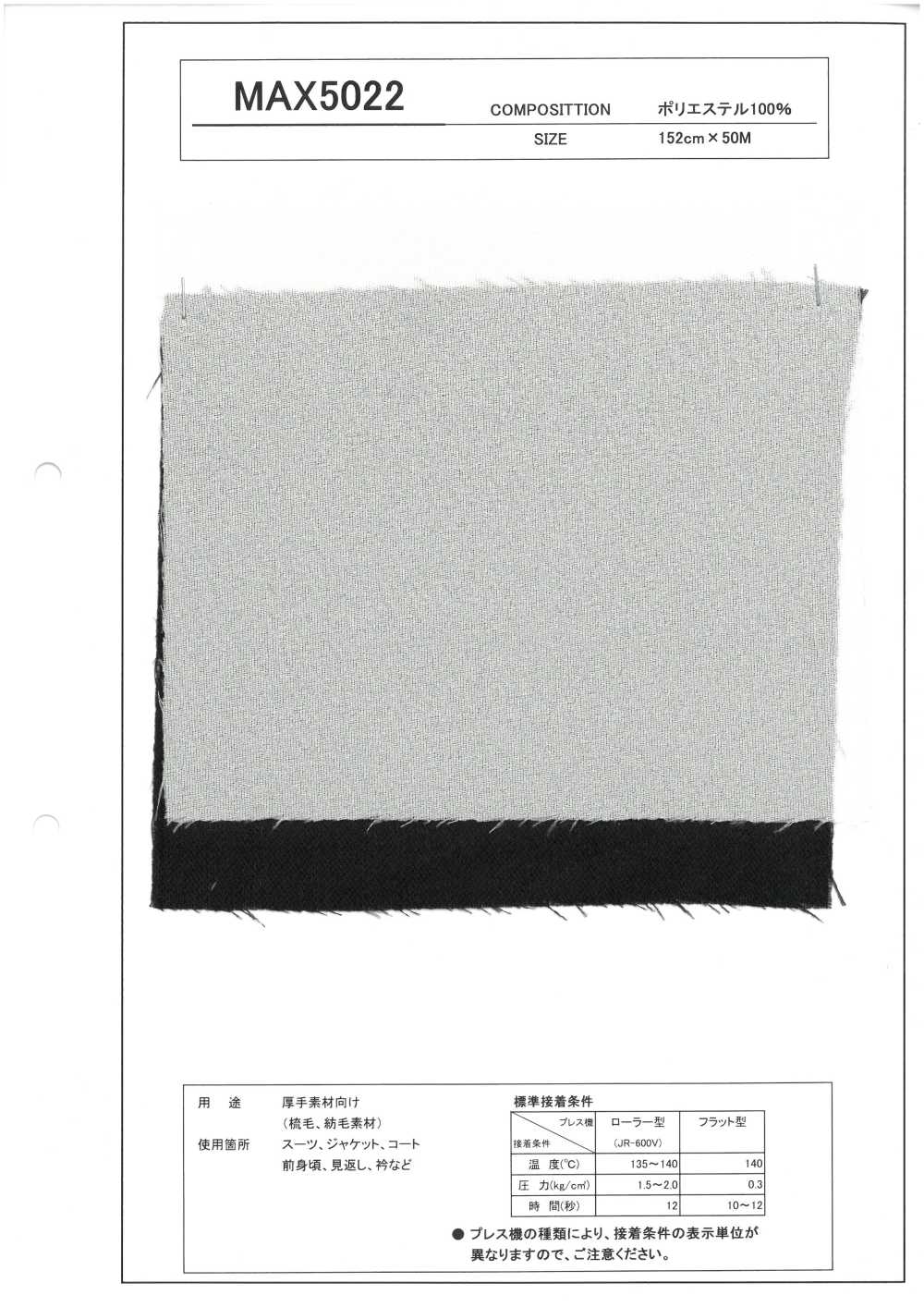

MAX5022

MAX5022

Interfacing For Thick Materials

Name: Interfacing For Thick Materials
SKU: 1106495

ApparelX ID:1106495

This interlining is for heavyweight materials (worsted and woolen materials).
It can be used for jacket, shirt, and casual wear plackets, collars, cuffs, and more.

*When ordering by roll, enter 50 as the quantity.

Set roll quantity

Brand / Manufacturer:

Supplier:

Color:Please select

Stock Status(*):Displayed after account registration

*Excl. tax

Qty.

Ask About This Product

Color

Please select a color:

Order Remarks

Add a note for the supplier or for your own reference:

Enter Order Remarks

Product Description

Set roll quantity

Standard fusing conditions
・Flat type

Temperature	140°C
Time	10–12 seconds
Pressure	0.3kgf/cm²

・Roller type

Temperature	135–140°C
Time	12 seconds
Pressure	1.5–2.0kgf/cm²

* For the roller type, the pressure unit is displayed pressure, and for the flat type, the pressure unit is actual pressure.
* Please note that the displayed unit for fusing conditions differs depending on the type of press machine.

Category	Interfacing
Subcategory	Fusible Interlining
Gender	Unisex
Intended Use	General Purpose
Style	JACKET, SHIRT


Specification	Specification: 152cm×50M
Material	100% polyester E

Share This Item

FAQ

Frequently asked questions about this product:

What are the standard sizes for inside belt interfacing used in men's garments?

33 mm, 38 mm.

What kind of problem is kiratsuki?

It is the phenomenon of resin sparkling through the gaps in the weave of the face fabric.
Materials with a loose weave and dark-colored lightweight fabrics are especially noticeable, so using colored resin will resolve it.

What kind of problem is bleed-through?

A state where adhesive resin seeps through to the outer fabric, impairing the fabric’s hand.
As a solution, choose one with a smaller adhesive resin particle size.

What does the D (denier) in 20D or 30D mean?

Denier is a unit used for filament yarn (continuous filament fiber)*, indicating the weight per 9,000 m. If 9,000 m weighs 1 g, it is 1 denier; if it weighs 50 g, it is 50 denier.
The higher the denier count, the thicker the thread and the heavier the fabric.

What kind of problem is bubbling?

A condition where fine air bubbles appear to be trapped between the outer fabric and interlining. It occurs because the compatibility between the fabric and interlining is poor. It may be resolved by choosing an interlining with vertical and horizontal stretch.

What kind of problem is fading?

It is when the uneven texture of the resin pellets becomes clearly visible on the surface of the outer textile. The solution is to choose interfacing with smaller resin dots.

What is the difference between single-dot and double-dot fusible interlining?

It is a difference in the adhesive coating method.
Single dot is made by solidifying fine powdered adhesive and transferring it in a dotted pattern onto the base fabric.
Because the adhesive is fine, it is less likely to bleed through thin materials and less likely to cause fading.
Double dot has a two-layer structure, with a gel-like adhesive forming the base and powdered adhesive layered on top of it.
It provides strong adhesion for a wide range of materials.

What is the difference between the whites such as KW, OW, W, and Y in fusible interlining colors?

The color notation varies by product number, but KW and W are fluorescent white, and Y and OW are off-white.
Fluorescent white is a whiter, purer white.

How should I choose interfacing?

The appropriate interlining varies depending on the face fabric material, thickness, and area of use, so we cannot give a single answer.
Please contact us via inquiries with the face fabric material, area of use (neckline, body, etc.), and desired hand feel.

If you can provide the face fabric, we can perform an adhesion test. Please request this from Interlining Adhesion Test.
By performing an adhesion test, you can find out in advance things like adhesive strength and changes in appearance.
