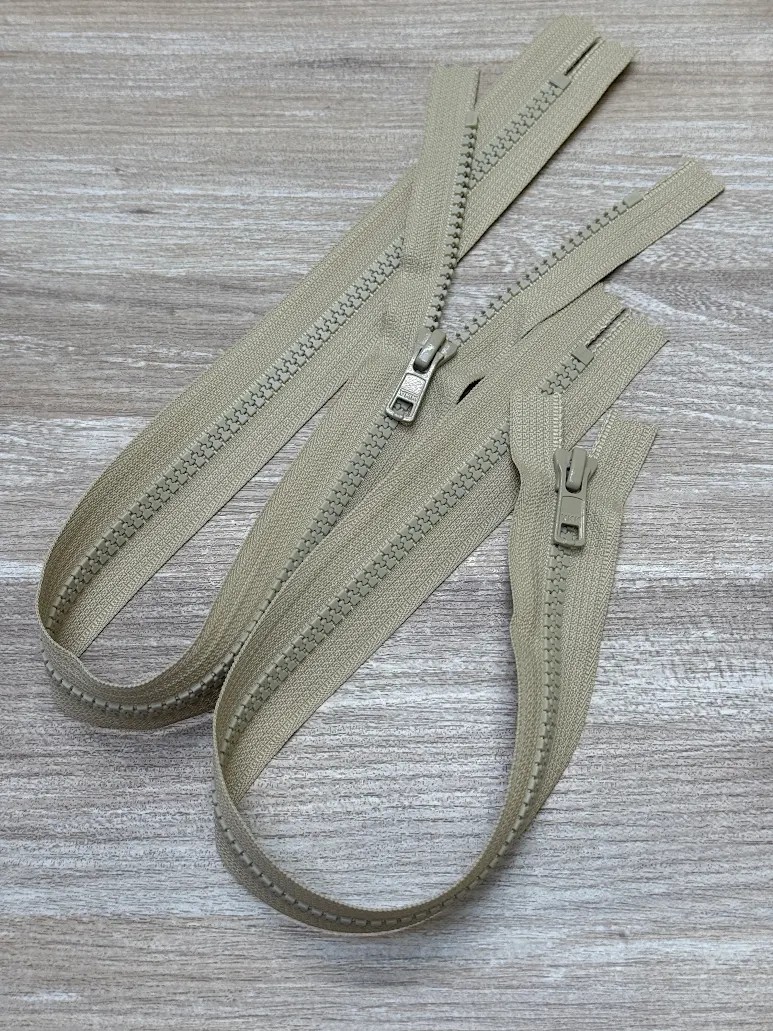

5VSC-OUTLET Vislon® Zipper, Size 5, Closed-end YKK

5VSC-OUTLET

Vislon® Zipper, Size 5, Closed-end

Name: Vislon® Zipper, Size 5, Closed-end
Brand: YKK
SKU: 1108674
Rating: 5 (1 reviews)

ApparelX ID:1108674

As this product cannot be returned to the manufacturer, it is sold as an outlet item.

Vislon® is a zipper whose elements are made by injection-molding resin such as polyacetal. The slider is DA86.

Brand / Manufacturer:YKK

Supplier:

POM

VISLON STANDARD

OUTLET

Size:Please select Color:Please select

Stock Status(*):Displayed after account registration

*Excl. tax

Qty.

Ask About This Product

Size

Please select a size:

37CM

40CM

45CM

49CM

54CM

59CM

Color

Please select a color:

010

580

Order Remarks

Add a note for the supplier or for your own reference:

Enter Order Remarks

Product Description

As this product cannot be returned to the manufacturer, it is sold as an outlet item.

Vislon® is a zipper whose elements are made by injection-molding resin such as polyacetal. The slider is DA86.

This item is being listed as an outlet item because it has been discontinued and stock is being cleared.

Category	Zipper
Subcategory	Vislon Zipper
Gender	Unisex
Usage	General Purpose
Product Category	Closed
Teeth Size	Size 5
Tag	Sale
Collection	VISLON STANDARD OUTLET


Brand / Manufacturer	YKK

Share This Item

FAQ

Frequently asked questions about this product:

Will the elements of the coil zipper be removed before delivery?

If you select the delivery-priority (processing) option, the product will be delivered with the elements attached.
Please note that in the case of factory processing, the product will be delivered without the elements.

If you would like the elements removed for delivery-priority (processing), please write "Please remove the elements" in the order memo field.
If this is not specified, the product will be delivered with the elements attached.

Can DA2E be selected for an 8-size EXCELLA two way separator zipper?

For an 8-size EXCELLA two-way separating zipper, there is no DA2E specification for the lower slider, but it can be arranged if the upper slider is DA2E and the lower slider is DA1, etc.

Do you handle pull tabs for the Decorative Series, such as ZY02 and ZY13?

It is possible to arrange pull tabs for the decorative series. When placing your zipper order on the ApparelX product page, please write the desired pull tab in the remarks field. Pull tabs for the decorative series are basically factory processing.

Can you arrange an aluminum No. 4 metal zipper?

We’re sorry, but this item has been discontinued as of March 2022.
If you choose a similar YZiP aluminum type, it can be arranged in size 4.
4YANC YZiP® zipper (aluminum) size 4, closed-end
4YANOR YZiP® zipper (aluminum) size 4, open-end

Do you carry ball-pull zippers?

There is no product called a ball zipper; the slider called DABL is the ball-type slider.
Please select slider "DABL" from the product page for the zipper you want and place your order.

Do you have tape color swatches?

Tape color card sample card is available for sale.

How should I specify the cord for the slider plating color?

cord	Specification
E	Paint
P	Premium nickel plating
N	Nickel plating
C5	Silver plating
C6	Matte silver plating
H3	Antique silver plating
V3	Black silver plating
X6	Matte black
Q	Real gold plating
OU	Premium gold plating
O	Gold plating
KQ	Clear gold plating
I	Antique gold plating

Please enter your desired color in alphabet letters in the remarks field, according to the table above, such as "I would like P plating for the slider color".

Is it correct that 4.5 is written on the back of the size 3 YZiP slider GSBN8?

Regarding the GSBN8 slider for 3-size YZiP, the 3-size item is marked 4.5.
Please rest assured that it is indeed the 3-size item.

Can you arrange YKK's Old American zipper?

Available only through factory processing. Lead time is approximately 3 to 4 weeks.
If you contact us through the support page with the details below, we will confirm the unit price and lead time.

･Zipper product category [closed-end/open-end/two way separator (for two-way separators and similar styles that can have two sliders, the element color is limited to C/# Gold only.)]
･Size
･Length
･Quantity
･Element color
･Tape color
･Slider
･Top stop
･Bottom stop
･Brand name to be used

Do you carry open-end concealed zippers?

We apologize, but open-type concealed zippers were discontinued in all sizes as of March 2022, so
this item cannot be arranged.

Do you handle zippers longer than 100 cm or shorter than 20 cm?

Can be arranged. Please choose the closest length and enter the desired length in the remarks field.
*Price varies depending on length.

Is it possible to arrange a zipper slider without the YKK EXCELLA logo?

Yes, it is possible. In that case, it will be factory processing only. If you note it in the memo field or remarks field when placing your order, we will arrange it for you.

I would like the zipper separately without the top stop. Is that possible to order?

Yes, that is possible. If you specify it in the remarks field when placing your order, we will arrange it for you. The unit price will be provided separately.

Can you arrange a zipper for reverse use?

Yes, we can. If you write it in the remarks field or memo field when placing your order, we will arrange the zipper for reverse use.

I’d like a left-insertion zipper. Is it possible to order one?

Yes, that is possible. For open-end zippers, the product number suffix is OR for right-side insertion and OL for left-side insertion. For two way separator zippers, the product number suffix is MR for right-side insertion and ML for left-side insertion.
At present, on ApparelX we only have product pages for right-side insertion items, so please place your order from the right-side insertion product page.
If you note in the remarks field at the time of ordering that you would like to change to left-side insertion, we will arrange it for you. We will contact you separately regarding the unit price.

Is it possible to order a length that is not listed on the product page?

Yes, it is possible. When placing your order, please select the length closest to the length you want, and if you clearly specify the desired length in the remarks field, we will change it to that length and arrange it for you. (Delivery may take some time.)

Can I order a zipper in 0.5 cm increments? If so, how should I place the order?

Yes, it is possible. Please indicate the desired length in the order notes field, and we will arrange it to that length.
Please also place your order using the length rounded up to the nearest 0.5 cm. (Example: If you would like to request 20.5 cm, select 21 cm and clearly write "20.5 cm requested" in the notes field.)

I want head-to-head and bottom-to-bottom zippers. How should I place an order?

Please order a closed-end zipper and specify in the remarks field whether you want head-to-head or tail-to-tail.
We will check the unit price and delivery date and contact you by email.

Specifications for head-to-head and tail-to-tail zippers
〈Metal zipper〉 Size 5 / Size 7 / Size 8 / Size 10
〈Vislon〉 Size 3 / Size 5 / Size 8

Can I order a zipper in a color not listed on the product page? If so, how should I place the order?

Yes, that is possible. Please clearly write your desired color number in the remarks field when placing your order, and we will arrange it in that color.
* Colors not listed on the product page are often out of stock, and if the color is out of stock, it will be arranged through factory processing.

What color is the slider on the nickel silver metal zipper?

It is nickel-colored. Nickel silver has a slight yellow tint like a 500-yen coin, but nickel color is a whitish, bright silver color.

Can the slider color be changed?

Yes, it is possible. As a general rule, if nothing is specified, metal zippers come with sliders in the same color as the element, and other zippers come with sliders in the same color as the tape color.
(Sliders with an attached pull tab are available in metal color only.)
The slider color shown on the product page is for reference, so the color will vary depending on the zipper you order.
If you would like to change the slider color, please note it in the order memo.

Which slider should I choose if I want to attach a pull tab later?

Please choose a CA, ZA, ZF, or other slider that can be fitted with a pull tab afterward.
The difference between CA and ZA/ZF is whether a pull tab can be attached from the base or not.
Pull tabs are sold by various manufacturers, but the specifications determine whether they can be attached to CA or ZA, so please check carefully.
The color options for retrofit sliders are limited to metal colors only.

Is it possible to order only the slider for a YKK zipper?

Basically, we are unable to accept orders for sliders only, but it is possible to arrange them if they are ordered together with a chain zipper or used for a zipper previously purchased from APPARELX.
In that case, please contact us via the contact form on the Support Page with the type and size of the YKK zipper you purchased, the slider color, the slider product number, and the quantity. We will reply after confirmation.

I would like to order a two way separator zipper with different sliders on the top and bottom. How should I do that?

If you note the desired upper and lower sliders in the zipper memo field when placing your order, we will change them to the sliders you want and arrange the order accordingly.

Is it possible to obtain the comprehensive zipper catalog "FASTENING Senka"?

The booklet-type FASTENING SENKA has now been discontinued. We apologize for the inconvenience, but it can be downloaded from YKK's website, so please check there.
https://www.ykkfastening.com/japan/catalog/

How should I choose between sliders with locks and without locks?

You can determine this from the second letter of the slider product number.
“A” = automatic lock (the slider locks automatically when you let go of the pull tab, and unlocks when you pull the pull tab)
“F” = non-lock (a slider with no locking function, regardless of the position of the pull tab on the body)
“N” = notch lock (a notch is attached to the shoulder of the body, and it locks when opened by bringing the chain against the shoulder)
“W” = reversible (pull tabs are attached to the front and back, so it can be opened from either side)
“U” = reversible (an automatic slider with one pull tab that can move along the rotating rail and can be opened and closed from either the front or back.)

I want to place an order for a color or slider that is not listed on the product page. What should I do?

If you enter your preferred color and slider in the zipper memo field when placing your order, we will make the change and arrange it for you.

I selected Lead Time Priority (custom production), but what does custom length processing from longer stock mean?

As for zipper inventory, products other than 2CHC concealed zippers are not stocked in the exact length you specify. For made-to-order production, we can process a longer zipper to make it, which shortens the delivery time but increases the unit price. If you want it processed from longer stock and need it right away, please select "Delivery priority (higher unit price)."

The article below is about coil zippers, but it also explains zipper inventory.
https://apparelx-news.jp/apparel-material/zipper/coil-fastener
